HT3130 | 120T

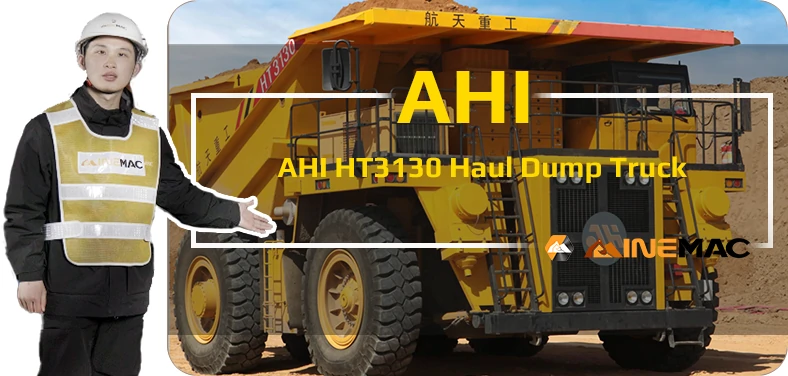

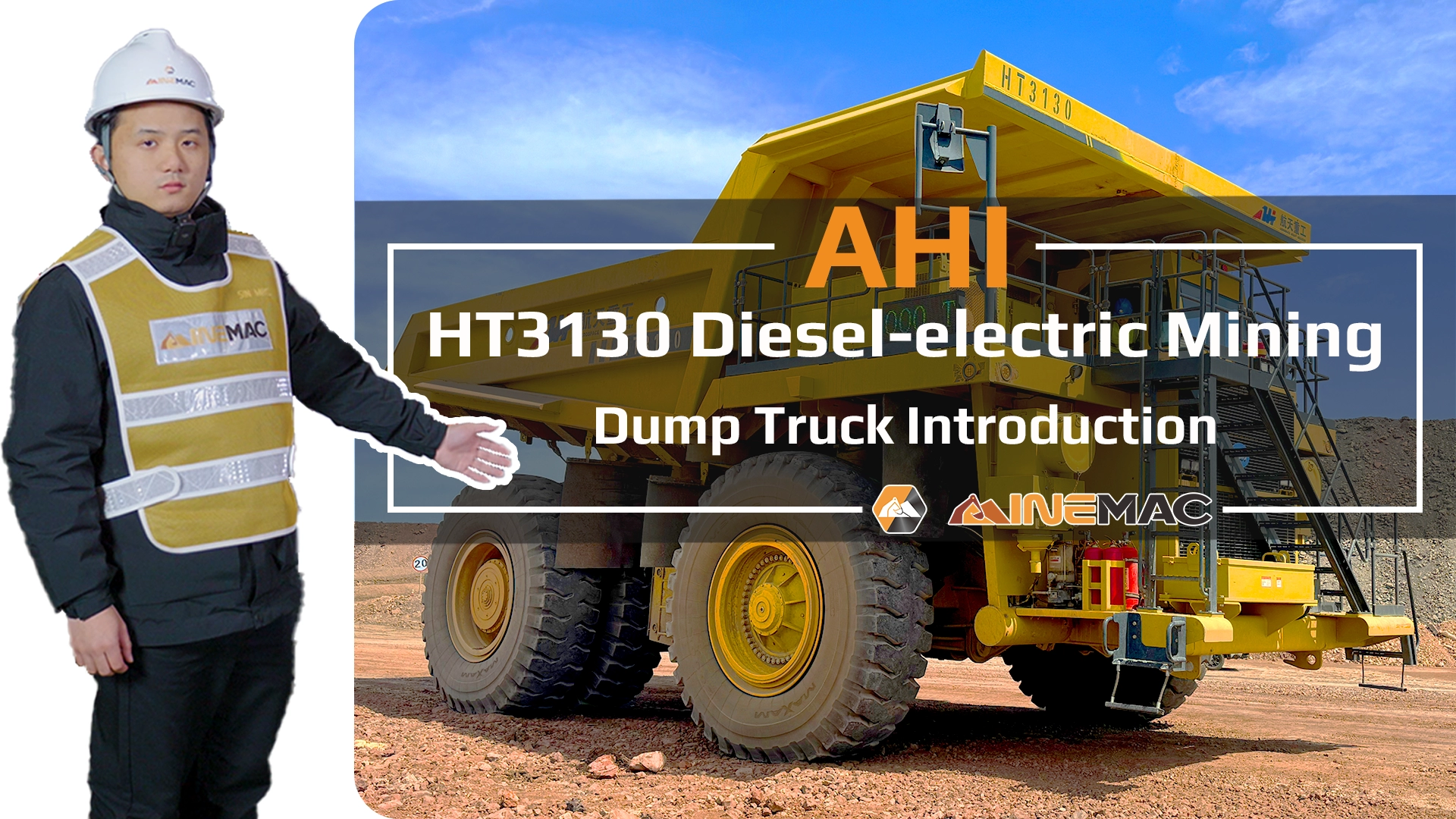

AHI H3130 is an electric – drive mining dump truck with a rated load capacity of 120 tons, and its localization rate reaches 95%. It is equipped with a new electric – drive system, combined with a welded rigid frame, MacPherson oil – gas spring front suspension and a full – hydraulic steering system, enabling precise steering and sensitive transmission during operation. The use of domestic components for assembly makes it highly durable and reduces operation and maintenance costs, making it suitable for large – scale open – pit mine transportation.
As part of EMAC, ConeMac provides industrial power pack solution that integrated with air intake, air exhaust, cooling system, control system, transmission and hydraulic accessories, We also supplying special products such as explosion proof engine, generator and water pump set, as well as ultra-low temperature condition engine power pack.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
EMAC Group Participates in Automechanika Istanbul Exhibition in Istanbul
As one of the largest automotive events in the world, the Automechanika Istanbul Show attracts exhibitors and visitors from across the globe. Our Company is excited to showcase its latest products and services at the event, which will provide an excellent opportunity to network with industry professionals and connect with potential customers.EMAC Customer Interview-Thailand Engineering Company
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust !EMAC Customer Interview-Indonesia Shipyard
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust!Identification and Classification Report for Air Transport of Goods
Advantages of AHI HT3130 Hual Truck
Energy saving: Can be equipped with LNG hybrid engine, achieve environmental protection and energy saving.
Economic stability: Higher payload capacity,excellent fuel effciency,Wide distance between supporting point of the dump body, the truck is reliable.
Long service Life: AC electric drive system, low maintenance cost and long lifetime,Independent dual rear axles + swing axle + four rear independent driving tires design, the truck is more powerful, each tire’s load is
evenly and lifetime is longer.Intelligent extension: The truck setting meets the requirements ofintelligent interface,which can realize unmanned driving rapid transformation of vehicles, and effectively promote theinnovative development of smart mines.
Technical Specifications
| Truck Model： | HT3130 |
| Engine Model: | ①Cummins KTA38-C1200 ②Cummins QSK38-C1200 ③Weichai 12M33G1225E304 ④MTU 16V2000C66 |
| Drive Model: | 4×2 Rear Wheel Electric Drive |
| Transmission Model: | AC Transmission |
| Steering: | Full Hydraulic Power Steering |
| Payload Class: | 120 t/118.1 ton |
| Empty Vehicle Weight (EVW): | 90 t/88.6 ton |
| Gross Vehicle Weight (Gvw): | 205 t/201.8 ton |
| Max.Speed: | 50 km/h |
| Lead Time: | 15 – 30 Working Days |
| Payment Terms: | T/T,L/C |
Hual Truck Model | Payload Class | Vehicle Weight | External Dimensions | Min. Ground Clearance |
| HT3110E | 110 t | 90 t | 11610 * 6600 * 6420 mm | ≥600 mm |
| HT3130 | 120 t | 110 t | 12120 * 7530 * 6100 mm | 600 mm |
| HT3143 | 130 t | 110 t | 11840 * 7530 * 6070 mm | 600 mm |
| HT5220 | 220 t | 110 t | 15790 * 9500 * 7810 mm | 800 mm |
| HT3240 | 220 t | 165 t | 14500 * 7500 * 6910 mm | 800 mm |
| HT5240 | 220 t | 165 t | 15000 * 7200 * 6980 mm | 800 mm |
| HT3363 | 363 t | 237 t | 15790 * 9500 * 7810 mm | 800 mm |
| HT3150-LNG | 136 t | 120 t | 12120 * 7530 * 6100 mm | 600 mm |
| ——END—— | ||||
| Dimension Information of AHI HT3130 Hual Truck | |||
| Length | 11,990mm/472″ | Axle Base | 5,000mm/196.9″ |
| Width | 6,400mm/252″ | Front Wheel Base | 5145mm/202.6″ |
| Loading Height | 6,100mm/240.2″ | Rear Wheel Base | 4185mm/164.8″ |
| Dump Body Up Height | 11,400mm/448.8″ | Tire (Qty) | 30.00R51(6) |
| Min.Ground Clearance | 600mm/23.6″ | ||
| Weight Information of AHI HT3130 Hual Truck | |||
| Payload Class | 120 t/118.1 ton | Flat Loading | 2119 ft³ |
| Empty Vehicle Weight (EVW) | 90 t/88.6 ton | Pile Loading | 2578 ft³ |
| Gross Vehicle Weight (Gvw) | 205 t/201.8 ton | Fuel Tank | 1,500 L/396.3 gal |
| Hydraulic Reservoir | 650 L/172 gal | ||
| Performance Information of AHI HT3130 Hual Truck | |||
| Engine Model | Cummins KTA38-C1200\Cummins QSK38-C1200\Weichai 12M33G1225E304\MTU 16V2000C66 | Drive Mode | 4×2 Rear Wheel Electric Drive |
| Transmission Mode | AC Transmission | Front Suspension | Candle Type Indedent Suspension |
| Rear Suspension | Trailing Arm independent Suspensior | Steering | Full Hydraulic Power Steering |
| Main Configuration Information of AHI HT3130 Hual Truck | |||
| Max.Speed | 50 km/h | Braking Distance At 30km/h | 14.8 m/48.4 ft |
| Min.Turning Diameter | 24.5 m/80.4 ft | Rated Grade Ability | 8 % |
| Max.Grade Ability | 16 % | LiftingDump Body Time | <22 s |
Can Quality be Guaranteed?
(1)Strict production process and testing: The production process adopts advanced manufacturing technology and strict quality management system to ensure that each engine is precisely assembled and tested. Komatsu will conduct various performance tests, such as power test, emission test, etc., to ensure the running stability and reliability of the engine.
(2) Quality management system: Our company has a complete quality management system to ensure that every link meets strict quality standards.
(3) Continuous improvement and feedback mechanism: We focus on continuous improvement, communicate with customers through feedback mechanism, continuously optimize product quality and performance, and ensure that the needs of the market and customers are met.
Is the Price Reasonable?
We are the original manufacturer and can give you the most suitable price. The key to dealing with Chinese suppliers is to find and choose reliable business partners who will not deceive you for short-term business, but aim to establish a long-term career and lifelong partnership. EMAC is one of the reliable partners. We will not pursue short-term high profits, but we care about our decades of good reputation. Our cooperation with all business partners is not only as suppliers and customers, but also as close friends and brothers.
What should I do if I don’t Understand the Product?
You can unconditionally explain your needs to us. We have a professional team that uses simple and clear language to explain the characteristics and advantages of the product and help you choose the right engine to match your machine. If you need further support or explanation, we are always available to help and explain the relevant content to help you solve the problem.
How to Place an Order?
You can confirm the product by connecting with our sales, or you can choose to contact us through wahtspp or your email, and we will guide you to complete the order process.
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
