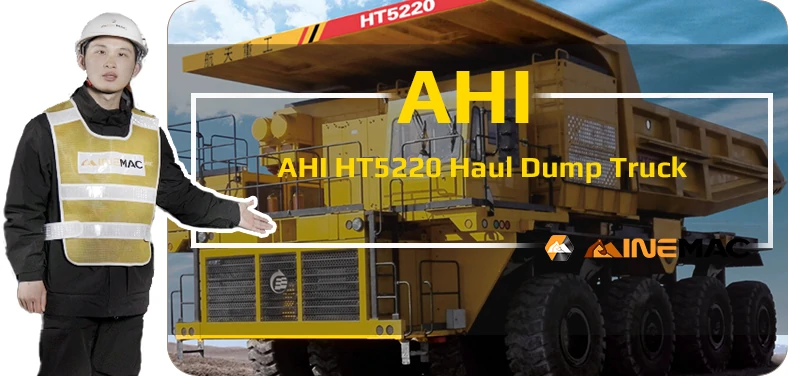

HT5220 | 220T
AHI HT5220 is a high – performance mining haul truck with a rated load capacity of 220 tons, and its domestic – developed component ratio is as high as 90%. It is outfitted with an advanced power – efficient engine system, integrated with a high – strength bolt – connected frame, independent double – wishbone oil – air suspension and an electro – hydraulic proportional steering system, ensuring stable driving and smooth control during operation. The utilization of domestically – sourced high – quality components for manufacturing not only enhances its reliability but also significantly cuts down on operation and maintenance expenses, making it an ideal choice for large – scale open – pit mine transportation tasks. At present, it has been successfully deployed in the Inner Mongolia Baotou Mining Area. Additionally, it is equipped with an intelligent control chassis, which paves the way for future autonomous driving and intelligent operation upgrades.
As part of EMAC, ConeMac provides industrial power pack solution that integrated with air intake, air exhaust, cooling system, control system, transmission and hydraulic accessories, We also supplying special products such as explosion proof engine, generator and water pump set, as well as ultra-low temperature condition engine power pack.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
EMAC Group Participates in Automechanika Istanbul Exhibition in Istanbul
As one of the largest automotive events in the world, the Automechanika Istanbul Show attracts exhibitors and visitors from across the globe. Our Company is excited to showcase its latest products and services at the event, which will provide an excellent opportunity to network with industry professionals and connect with potential customers.EMAC Customer Interview-Thailand Engineering Company
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust !EMAC Customer Interview-Indonesia Shipyard
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust!Identification and Classification Report for Air Transport of Goods
Advantages of AHI HT5220 Hual Truck
Stable And Reliable: Multi-axles and small tires design has low gravity center, make the ability of anti-overturn stronger, the truck can keep driving even several tires damage.
Module pesign: Modular design concept allows fast replacement, off-line main tenance,improve operational efhciency.
Driving comfot: The technology of hydraulic independent suspension and swing.
Energy Saving And cost Reduction: Twin-engine and independent driving technology can reduce the
fuel consumption.Smaller tires can reduce the tire purchase cost.Intelligent extension: The truck setting meets the requirements ofintelligent interface,which can realize unmanned driving rapid transformation of vehicles, and effectively promote the innovative development of smart mines.
Technical Specifications
| Truck Model： | HT5220 |
| Engine Model: | YUCHAI 12VTD1250 |
| Drive Model: | 16×12 Electric Drive |
| Transmission Model: | AC Transmission |
| Steering: | Full Hydraulic Power Steering |
| Payload Class: | 220 t/240 ton |
| Empty Vehicle Weight (EVW): | 168 t/185 ton |
| Gross Vehicle Weight (Gvw): | 388 t/426 ton |
| Max.Speed: | 45 km/h |
| Rated Grade Ability: | 8 % |
| Max.Grade Ability： | 16 % |
| Lead Time: | 15 – 30 Working Days |
| Payment Terms: | T/T,L/C |
Hual Truck Model | Payload Class | Vehicle Weight | External Dimensions | Min. Ground Clearance |
| HT3110E | 110 t | 90 t | 11610 * 6600 * 6420 mm | ≥600 mm |
| HT3130 | 120 t | 110 t | 12120 * 7530 * 6100 mm | 600 mm |
| HT3143 | 130 t | 110 t | 11840 * 7530 * 6070 mm | 600 mm |
| HT5220 | 220 t | 110 t | 15790 * 9500 * 7810 mm | 800 mm |
| HT3240 | 220 t | 165 t | 14500 * 7500 * 6910 mm | 800 mm |
| HT5240 | 220 t | 165 t | 15000 * 7200 * 6980 mm | 800 mm |
| HT3363 | 363 t | 237 t | 15790 * 9500 * 7810 mm | 800 mm |
| HT3150-LNG | 136 t | 120 t | 12120 * 7530 * 6100 mm | 600 mm |
| ——END—— | ||||
| Dimension Information of AHI HT5220 Hual Truck | |||
| Length | 15,021mm/591.4″ | Axle Base | 2,970mm+3170mm+2970mm/117″+125″+117″ |
| Width | 7,620mm/300″ | Front Wheel Base | 4,550mm/179″ |
| Loading Height | 5,768mm/227″ | Rear Wheel Base | 4,550mm/179″ |
| Dump Body Up Height | 1,4587mm/574.3″ | Tire (Qty) | 33.25-35(16) |
| Min.Ground Clearance | 765mm/30″ | ||
| Weight Information of AHI HT5220 Hual Truck | |||
| Payload Class | 220 t/240 ton | Flat Loading | 3532 ft³ |
| Empty Vehicle Weight (EVW) | 168 t/185 ton | Pile Loading | 4592 ft³ |
| Gross Vehicle Weight (Gvw) | 388 t/426 ton | Fuel Tank | 3,400 L/898 gal |
| Hydraulic Reservoir | 1300 L/344 gal | ||
| Performance Information of AHI HT5220 Electric-wheel wide-Body Mining Dump Truck | |||
| Engine Model | YUCHAI12VTD1250 | Drive Mode | 16×12 Electric Drive |
| Transmission Mode | AC Transmission | Front Suspension | Candle Type Indedent Suspension |
| Rear Suspension | Trailing Arm independent Suspensior | Steering | Full Hydraulic Power Steering |
| Main Configuration Information of AHI HT5220 Electric-wheel wide-Body Mining Dump Truck | |||
| Max.Speed | 45 km/h | Braking Distance At 48km/h | 25 m/83 ft |
| Min.Turning Diameter | 24.5 m/80 ft | Rated Grade Ability | 8 % |
| Max.Grade Ability | 16 % | LiftingDump Body Time | 28 s |
Can Quality be Guaranteed?
(1)Strict production process and testing: The production process adopts advanced manufacturing technology and strict quality management system to ensure that each engine is precisely assembled and tested. Komatsu will conduct various performance tests, such as power test, emission test, etc., to ensure the running stability and reliability of the engine.
(2) Quality management system: Our company has a complete quality management system to ensure that every link meets strict quality standards.
(3) Continuous improvement and feedback mechanism: We focus on continuous improvement, communicate with customers through feedback mechanism, continuously optimize product quality and performance, and ensure that the needs of the market and customers are met.
Is the Price Reasonable?
We are the original manufacturer and can give you the most suitable price. The key to dealing with Chinese suppliers is to find and choose reliable business partners who will not deceive you for short-term business, but aim to establish a long-term career and lifelong partnership. EMAC is one of the reliable partners. We will not pursue short-term high profits, but we care about our decades of good reputation. Our cooperation with all business partners is not only as suppliers and customers, but also as close friends and brothers.
What should I do if I don’t Understand the Product?
You can unconditionally explain your needs to us. We have a professional team that uses simple and clear language to explain the characteristics and advantages of the product and help you choose the right engine to match your machine. If you need further support or explanation, we are always available to help and explain the relevant content to help you solve the problem.
How to Place an Order?
You can confirm the product by connecting with our sales, or you can choose to contact us through wahtspp or your email, and we will guide you to complete the order process.
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
