HT115E | 80T

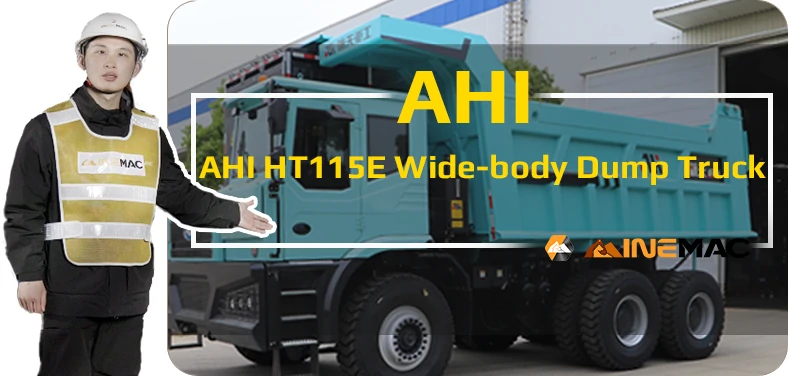

AHI HT115E is an advanced mining transport vehicle with a rated load capacity of 115 tons, designed to meet the rigorous demands of large-scale open-pit mining operations. With 90% of its components sourced domestically, the vehicle ensures excellent reliability while reducing costs. It is powered by a high-performance engine system, paired with a reinforced welded frame and front and rear trailing-arm hydro-pneumatic suspension, offering exceptional stability and smooth operation on rough terrains. The electro-hydraulic steering system provides precise control, ensuring accurate handling in challenging environments. The AHI HT115E’s use of premium domestic components not only enhances its operational efficiency but also minimizes maintenance expenses, making it a cost-effective choice for long-term mining transport. Currently in use at several key mining sites in Henan Province, this vehicle is also equipped with an innovative chassis control system, enabling seamless future integration of intelligent technologies and specialized mining functions.
As part of EMAC, ConeMac provides industrial power pack solution that integrated with air intake, air exhaust, cooling system, control system, transmission and hydraulic accessories, We also supplying special products such as explosion proof engine, generator and water pump set, as well as ultra-low temperature condition engine power pack.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
EMAC Group Participates in Automechanika Istanbul Exhibition in Istanbul
As one of the largest automotive events in the world, the Automechanika Istanbul Show attracts exhibitors and visitors from across the globe. Our Company is excited to showcase its latest products and services at the event, which will provide an excellent opportunity to network with industry professionals and connect with potential customers.EMAC Customer Interview-Thailand Engineering Company
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust !EMAC Customer Interview-Indonesia Shipyard
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust!Identification and Classification Report for Air Transport of Goods
Advantages of AHI HT115E Wide-body Mining Truck
Energy saving: Can be equipped with LNG hybrid engine, achieve environmental protection and energy saving.
Economic stability: Higher payload capacity,excellent fuel effciency,Wide distance between supporting point of the dump body, the truck is reliable.
Long service Life: AC electric drive system, low maintenance cost and long lifetime,Independent dual rear axles + swing axle + four rear independent driving tires design, the truck is more powerful, each tire’s load is
evenly and lifetime is longer.Intelligent extension: The truck setting meets the requirements ofintelligent interface,which can realize unmanned driving rapid transformation of vehicles, and effectively promote theinnovative development of smart mines.
Technical Specifications
| Truck Model： | HT115E |
| Drive Model: | 6* 4 |
| External Dimensions(L*W*H): | 9380*4000*4300 mm |
| Wheelbase: | 3800+1800 mm |
| Vehicle Weight: | 35000 kg |
| Payload: | 80000 kg |
| Min. Ground Clearance: | 380 mm |
| Fuel Tank： | N/A |
| Rated Power： | 420 kW |
| Max.input torque： | 5500 Nm |
| Rated Speed： | N/A |
| Lead Time: | 15 – 30 Working Days |
| Payment Terms: | T/T,L/C |
Wide-body Mining Truck Model | Vehicle Weight | Payload | External Dimensions | Min. Ground Clearance |
| HT115 | 35000 kg | 80000 kg | 9380 * 4000 * 4300 mm | 380 mm |
| HT115E | 35000 kg | 80000 kg | 9380 * 4000 * 4300 mm | 380 mm |
| HT115EV | 40000 kg | 90000 kg | 9380 * 4000 * 4300 mm | 380 mm |
| HT125 | 35000 kg | 90000 kg | 9360 * 4000 * 4290 mm | 380 mm |
| HT125E | 35000 kg | 90000 kg | 9380 * 4000 * 4335 mm | 380 mm |
| HT130HEV | 40000 kg | 90000 kg | 10100 * 4500 * 4655 mm | 380 mm |
| HT130HEVA | 48000 kg | 90000 kg | 10300 * 4620 * 4570 mm | 380 mm |
| ——END—— | ||||
| Dimension Information of AHI H115E Wide-body Mining Truck | |||
| External Dimensions(L * W * H) | 9380*4000*4300 mm | Min. ground Clearance | 380 mm |
| Wheelbase | 3800+1800 mm | Max. angle of Bucket Lifting | 50° |
| Front and Rear Wheelbase | 3140/2970 mm | ||
| Mass Parameters of AHI HT115E Wide-body Mining Truck | |||
| Vehicle Weight | 35000 kg | Hydraulic Oil Tank Capacity | 200 L |
| Payload | 80000 kg | Empty Front Axle | 40 % |
| Container Capacity(Standard Flat Loading) | 35 m³ | Empty Rear Axle | 30+30 % |
| Container Capacity(Stacking) | 47 m³ | Fully Loaded Front Axle | 22 % |
| Fuel tank | N/A | Fully Loaded Rear Axle | 39+39 % |
MLRS
| Main Configuration of AHI HT115EV Wide-body Mining Truck | |||
| Engine Rated Power | N/A | Traction Motor Rated Power | 420 kW |
| Engine Max.torque | N/A | Traction Motor Rated Torque | 2600 Nm |
| Battery Pack Type Of Battery | LFP | Transmission Type | 4 speed AT |
| Battery Pack Rated Capacity | 422 kWh | Transmission Max. input torque | 5500 Nm |
| Power Battery Capacity | N/A | Vehicle Breaking Methods | Disk brake |
| Axle Rated Load | 30+43+43t | Centralized Lubrication System | Equip |
| Axle Drive Axle Speed Ratio | 16.086 | Hydro-pneumatic Suspension | Equip |
| Performance Parameter of AHI HT115EV Wide-body Mining Truck | |||
| Min. turning Diameter | 22 m | Rated Climbing Gradient (full load) | 8%,≥12 km/h |
| Max. speed Without Load | 45 km/h | Max. climbing Gradient (full load) | 28 % |
| Max. speed Under Full Load | 35 km/h | Max. slope Gradient (full load) | 30 % |
| 30km/h Acceleration Time (full load) | 20 s | Container Lifting/Falling Time | 30/30 s |
| 30km/h Braking Distance | 20 m | Driverless System | Optional |
Can Quality be Guaranteed?
(1)Strict production process and testing: The production process adopts advanced manufacturing technology and strict quality management system to ensure that each engine is precisely assembled and tested. Komatsu will conduct various performance tests, such as power test, emission test, etc., to ensure the running stability and reliability of the engine.
(2) Quality management system: Our company has a complete quality management system to ensure that every link meets strict quality standards.
(3) Continuous improvement and feedback mechanism: We focus on continuous improvement, communicate with customers through feedback mechanism, continuously optimize product quality and performance, and ensure that the needs of the market and customers are met.
Is the Price Reasonable?
We are the original manufacturer and can give you the most suitable price. The key to dealing with Chinese suppliers is to find and choose reliable business partners who will not deceive you for short-term business, but aim to establish a long-term career and lifelong partnership. EMAC is one of the reliable partners. We will not pursue short-term high profits, but we care about our decades of good reputation. Our cooperation with all business partners is not only as suppliers and customers, but also as close friends and brothers.
What should I do if I don’t Understand the Product?
You can unconditionally explain your needs to us. We have a professional team that uses simple and clear language to explain the characteristics and advantages of the product and help you choose the right engine to match your machine. If you need further support or explanation, we are always available to help and explain the relevant content to help you solve the problem.
How to Place an Order?
You can confirm the product by connecting with our sales, or you can choose to contact us through wahtspp or your email, and we will guide you to complete the order process.
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
