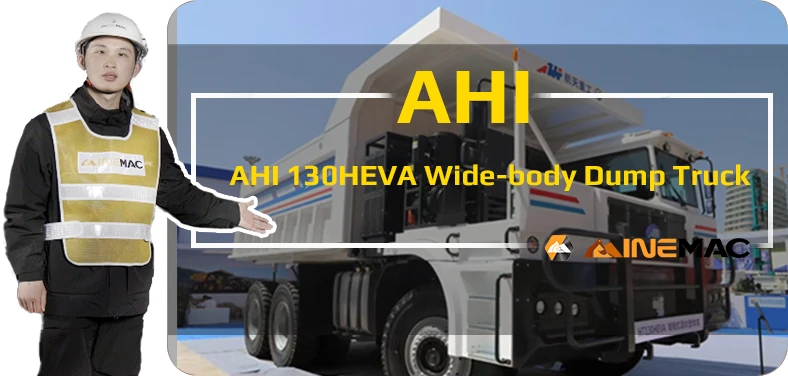

HT130HEVA | 90T
AHI HT130HEVA is a state-of-the-art electric mining transport vehicle with an impressive rated load capacity of 130 tons, specifically designed for heavy-duty operations in large-scale open-pit mines. With 90% of its components sourced domestically, the vehicle ensures exceptional reliability while significantly reducing operational and maintenance costs. Powered by a cutting-edge electric propulsion system, the AHI HT130HEVA offers high torque and efficient performance, while eliminating harmful emissions, making it a leading choice for sustainable mining operations. The vehicle is equipped with a robust welded frame, advanced front and rear trailing-arm hydro-pneumatic suspension, and a precise electro-hydraulic steering system, providing outstanding stability and smooth handling on rugged terrain. Its use of high-quality domestic components ensures long-term durability and reduced downtime. Currently deployed in prominent mining areas such as the Xinjiang Autonomous Region, the AHI HT130HEVA also integrates a flexible chassis control system, setting the stage for future intelligent upgrades and the incorporation of advanced electric and autonomous mining technologies.
As part of EMAC, ConeMac provides industrial power pack solution that integrated with air intake, air exhaust, cooling system, control system, transmission and hydraulic accessories, We also supplying special products such as explosion proof engine, generator and water pump set, as well as ultra-low temperature condition engine power pack.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
EMAC Group Participates in Automechanika Istanbul Exhibition in Istanbul
As one of the largest automotive events in the world, the Automechanika Istanbul Show attracts exhibitors and visitors from across the globe. Our Company is excited to showcase its latest products and services at the event, which will provide an excellent opportunity to network with industry professionals and connect with potential customers.EMAC Customer Interview-Thailand Engineering Company
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust !EMAC Customer Interview-Indonesia Shipyard
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust!Identification and Classification Report for Air Transport of Goods
Advantages of AHI HT130HEVA Wide-body Mining Truck
Energy saving: Can be equipped with LNG hybrid engine, achieve environmental protection and energy saving.
Economic stability: Higher payload capacity,excellent fuel effciency,Wide distance between supporting point of the dump body, the truck is reliable.
Long service Life: AC electric drive system, low maintenance cost and long lifetime,Independent dual rear axles + swing axle + four rear independent driving tires design, the truck is more powerful, each tire’s load is
evenly and lifetime is longer.Intelligent extension: The truck setting meets the requirements ofintelligent interface,which can realize unmanned driving rapid transformation of vehicles, and effectively promote theinnovative development of smart mines.
Technical Specifications
| Truck Model： | HT130HEVA |
| Drive Model: | 5* 4 |
| External Dimensions(L*W*H): | 10300*4620*4570 mm |
| Wheelbase: | 4200+1900 mm |
| Vehicle Weight: | 48000 kg |
| Payload: | 90000 kg |
| Min. Ground Clearance: | 450 mm |
| Fuel Tank： | 900 L |
| Rated Power： | 570 kW |
| Max.input torque： | 4800 Nm |
| Rated Speed： | N/A |
| Lead Time: | 15 – 30 Working Days |
| Payment Terms: | T/T,L/C |
Wide-body Mining Truck Model | Vehicle Weight | Payload | External Dimensions | Min. Ground Clearance |
| HT115 | 35000 kg | 80000 kg | 9380 * 4000 * 4300 mm | 380 mm |
| HT115E | 35000 kg | 80000 kg | 9380 * 4000 * 4300 mm | 380 mm |
| HT115EV | 40000 kg | 90000 kg | 9380 * 4000 * 4300 mm | 380 mm |
| HT125 | 35000 kg | 90000 kg | 9360 * 4000 * 4290 mm | 380 mm |
| HT125E | 35000 kg | 90000 kg | 9380 * 4000 * 4335 mm | 380 mm |
| HT130HEV | 40000 kg | 90000 kg | 10100 * 4500 * 4655 mm | 380 mm |
| HT130HEVA | 48000 kg | 90000 kg | 10300 * 4620 * 4570 mm | 380 mm |
| ——END—— | ||||
| Dimension Information of AHI H130HEVA Wide-body Dump Truck | |||
| External Dimensions(L * W * H) | 10300*4620*4570 mm | Min. ground Clearance | 450 mm |
| Wheelbase | 4200+1900 mm | Max. angle of Bucket Lifting | 50° |
| Front and Rear Wheelbase | 3240/3210 mm | ||
| Mass Parameters of AHI HT130HEVA Wide-body Dump Truck | |||
| Vehicle Weight | 48000 kg | Hydraulic Oil Tank Capacity | 260 L |
| Payload | 90000 kg | Empty Front Axle | 40 % |
| Container Capacity(Standard Flat Loading) | 48 m³ | Empty Rear Axle | 30+30 % |
| Container Capacity(Stacking) | 57 m³ | Fully Loaded Front Axle | 19 % |
| Fuel tank | 900 L | Fully Loaded Rear Axle | 40.5+40.5 % |
| Main Configuration of AHI HT130HEVA Wide-body Mining Truck | |||
| Engine Rated Power | 570 kW | Traction Motor Rated Power | 2 * 250 kW |
| Engine Max.torque | 2600 Nm | Traction Motor Rated Torque | 2*1330 Nm |
| Battery Pack Type Of Battery | Lithium manganate | Transmission Type | 3 speed AT |
| Battery Pack Rated Capacity | 120.5 kWh | Transmission Max. input Torque | 4800 Nm |
| Power Battery Capacity | N/A | Vehicle breaking methods | Disk brake+Drum brake |
| Main Generator Voltage Level | 620 VAC | Centralized Lubrication System | Equip |
| Main Generator Rated Power | 400 kW | Hydro-pneumatic Suspension | Equip |
| Performance Parameter of AHI HT130HEVA Wide-body Mining Dump Truck | |||
| Min. turning Diameter | 24 m | Rated Climbing Gradient (full load) | 8%,≥12 km/h |
| Max. speed Without Load | 45 km/h | Max. climbing Gradient (full load) | 32 % |
| Max. speed Under Full Load | 35 km/h | Max. slope Gradient (full load) | 28 % |
| 30km/h Acceleration Time (full load) | 20 s | Container Lifting/Falling Time | 30/30 s |
| 30km/h Braking Distance | 19 m | Driverless System | Optional |
Can Quality be Guaranteed?
(1)Strict production process and testing: The production process adopts advanced manufacturing technology and strict quality management system to ensure that each engine is precisely assembled and tested. Komatsu will conduct various performance tests, such as power test, emission test, etc., to ensure the running stability and reliability of the engine.
(2) Quality management system: Our company has a complete quality management system to ensure that every link meets strict quality standards.
(3) Continuous improvement and feedback mechanism: We focus on continuous improvement, communicate with customers through feedback mechanism, continuously optimize product quality and performance, and ensure that the needs of the market and customers are met.
Is the Price Reasonable?
We are the original manufacturer and can give you the most suitable price. The key to dealing with Chinese suppliers is to find and choose reliable business partners who will not deceive you for short-term business, but aim to establish a long-term career and lifelong partnership. EMAC is one of the reliable partners. We will not pursue short-term high profits, but we care about our decades of good reputation. Our cooperation with all business partners is not only as suppliers and customers, but also as close friends and brothers.
What should I do if I don’t Understand the Product?
You can unconditionally explain your needs to us. We have a professional team that uses simple and clear language to explain the characteristics and advantages of the product and help you choose the right engine to match your machine. If you need further support or explanation, we are always available to help and explain the relevant content to help you solve the problem.
How to Place an Order?
You can confirm the product by connecting with our sales, or you can choose to contact us through wahtspp or your email, and we will guide you to complete the order process.
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
