WLJ-3B
The electric scraper truck is used for the handling and docking of large equipment in the reversion operation of large-scale mine relocation. Vehicle used lead-acid battery as the power source, wheel motor as power output, 4x 4 al-wheel drive, it is mainly composed of articulated frame, electric wheel, cab, scraper structure,traction mechanism and articulated steering mechanism, slewing mechanism electrical system, hydraulic system, intelligent management system, etc.
As part of EMAC, ConeMac provides industrial power pack solution that integrated with air intake, air exhaust, cooling system, control system, transmission and hydraulic accessories, We also supplying special products such as explosion proof engine, generator and water pump set, as well as ultra-low temperature condition engine power pack.
We provide full life cycle services for all customers, from design to power system supply, from installation to commissioning, from after-sales service training to spare parts supply, from trouble shooting to overhaul technical support.
EMAC Group Participates in Automechanika Istanbul Exhibition in Istanbul
As one of the largest automotive events in the world, the Automechanika Istanbul Show attracts exhibitors and visitors from across the globe. Our Company is excited to showcase its latest products and services at the event, which will provide an excellent opportunity to network with industry professionals and connect with potential customers.EMAC Customer Interview-Thailand Engineering Company
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust !EMAC Customer Interview-Indonesia Shipyard
A Promise is A Promise, EMAC always do what we say, and for customer’s feedback, also 100% original from clients’s real words. EMAC, a Chinese company that you can trust!Identification and Classification Report for Air Transport of Goods

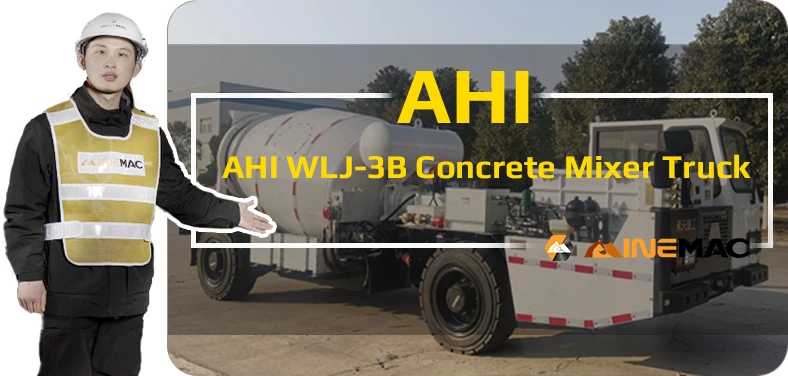

Advantages of AHI WLJ-3B Concrete Mixer Truck
Great Power: Four wheel-side motor drive technology with great power.
Low Energy consumption: Electric braking and mechanical braking are combined to reduce energy consumption.
Extended life:Electric drive system forced cooling technology, extended life.
Efficient And Reliable:Effcient intelligent health management technology, effcient and reliable.
Convenient Maintenance:System confguration modular technology, maintenance is convenient.
Technical Specifications
Truck Model: | WLJ-3B |
External Dimensions: | 6900 * 1950 * 2300 mm |
Vehicle Weight: | 8800 kg |
Rated Volume: | 3 m³ |
Full Load Weight: | 16000 kg |
Min. Ground Clearance: | 230 mm |
Empty Front Axle: | 63.7 % |
Empty Rear Axle: | 36.3 % |
Fully Loaded Front Axle: | 43.9 % |
Fully Loaded Rear Axle: | 56.1 % |
Lead Time: | 15 – 30 Working Days |
Payment Terms: | T/T,L/C |
Concrete Mixer Truck Model | Vehicle Weight | External Dimensions | Min. Ground Clearance | Full Load Weight |
WLJ-3B | 8800 kg | 6900 * 1950 * 2300 mm | 230 mm | 16000 kg |
——END—— |
Dimension Information of AHI WLJ-3B Concrete Mixer Truck | |||
External Dimensions | 6900 * 1950 * 2300 mm | Wheelbase | 3700 mm |
Min.Ground Clearance | 230 mm | Axle Track | 1590 mm |
Mass Information of AHI WLJ-3B Concrete Mixer Truck | |||
Vehicle Weight | 8800 kg | Empty Rear Axle | 36.3 % |
Rated Volume | 3 m³ | Fully Loaded Front Axle | 43.9 % |
Full Load Weight | 16000 kg | Fully Loaded Rear Axle | 56.1 % |
Empty Front Axle | 63.7 % | ||
Main Configuration of AHI WLJ-3B Concrete Mixer Truck | |||
Battery Pack Rated Capacity | 128 kWh | Pump Motor Rated Power | 5.5 kW |
Battery Pack Voltage Level | 640 V | Pump Motor Voltage Level | 640 V |
Battery Pack Type of Battery | LFP | Intelligent Monitoring System | Optional |
Drive Motor Voltage Level | 640 V | Automatic Fire Protection System | Optional |
Drive Motor Rated Power | 2 * 45 | Tire | 36-12.5-20-28PR |
Performance Parameter of AHI WLJ-3B Concrete Mixer Truck | |||
Max. speed (empty / full load) | 40 | Min. outer Diameter of the Turning Channel Circle | 14.4 |
Conprehensive Range(empty / full load) | 65/76 | Max. climbing Gradient (full load) | 14 |
8km/h Braking Distance | 6 | Max. slope Gradient (full load) | 14 |
Min. turning Diameter | 13.3 | ||
Can Quality be Guaranteed?
(1)Strict production process and testing: The production process adopts advanced manufacturing technology and strict quality management system to ensure that each engine is precisely assembled and tested. Komatsu will conduct various performance tests, such as power test, emission test, etc., to ensure the running stability and reliability of the engine.
(2) Quality management system: Our company has a complete quality management system to ensure that every link meets strict quality standards.
(3) Continuous improvement and feedback mechanism: We focus on continuous improvement, communicate with customers through feedback mechanism, continuously optimize product quality and performance, and ensure that the needs of the market and customers are met.
Is the Price Reasonable?
We are the original manufacturer and can give you the most suitable price. The key to dealing with Chinese suppliers is to find and choose reliable business partners who will not deceive you for short-term business, but aim to establish a long-term career and lifelong partnership. EMAC is one of the reliable partners. We will not pursue short-term high profits, but we care about our decades of good reputation. Our cooperation with all business partners is not only as suppliers and customers, but also as close friends and brothers.
What should I do if I don’t Understand the Product?
You can unconditionally explain your needs to us. We have a professional team that uses simple and clear language to explain the characteristics and advantages of the product and help you choose the right engine to match your machine. If you need further support or explanation, we are always available to help and explain the relevant content to help you solve the problem.
How to Place an Order?
You can confirm the product by connecting with our sales, or you can choose to contact us through wahtspp or your email, and we will guide you to complete the order process.
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
